HIKMICRO PS2 y PD2 – Pirómetro Infrarrojo Digital para Medición de Temperatura sin Contacto
PS210
€109,00
Ir directamente a la información del producto
HIKMICRO PS2 y PD2 – Pirómetro Infrarrojo Digital para Medición de Temperatura sin Contacto
€109,00

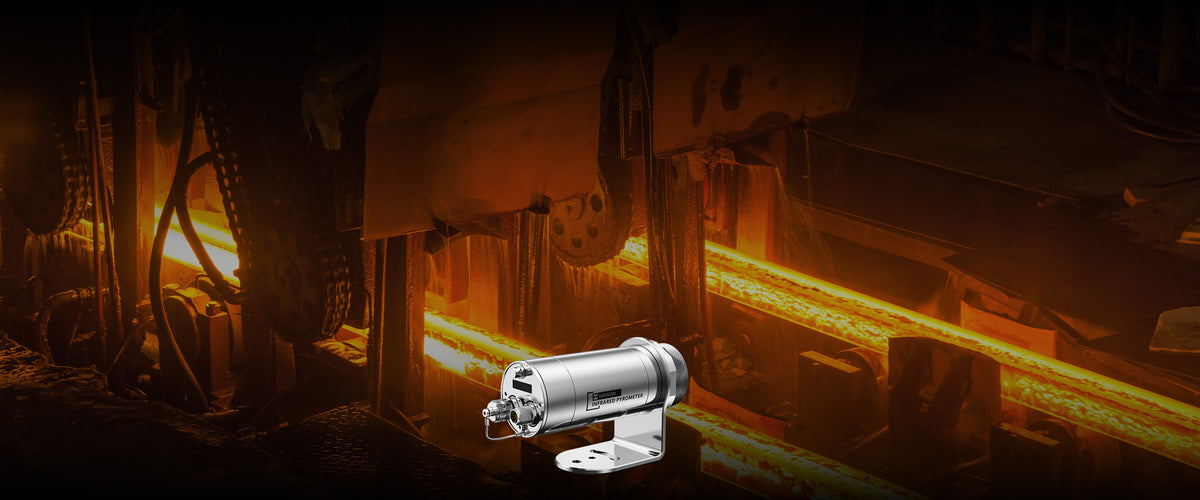

Pirómetro compacto HIKMICRO PS2 & PD2 Series
Rango de medición de temperatura de 150 °C a 3200 °C con precisión de hasta ± (0,3 % +1) °C
Especificaciones
Modelo de producto
Measurement Specifications
Spectral Response
Temperature Range
Accuracy
Resolution
Repeatability
Optical Resolution (D:S)
Spot Size
Response Time
Slope
Emissivity
Sighting
Signal Processing
Focus Range
Visual
Field of View (FOV)
Optical Resolution
Data Communication
Analog Output
Digital Output
Alarm Output
Protocols
General
Power Consumption
Protection Level
Vibration
Shock
Working Temperature Range
Storage Temperature Range
Relative Humidity
Weight
Dimension
Power Supply
Display
Laser
0.8μm ~ 1.08μm (Single Color)
500℃~1800℃(932°F~3272°F)
600-1800℃：± (0.3%*Tmea+2) ℃ /1112-3272℉：± (0.3%*Tmea+3.6) ℉, 500-600℃：± (2%*Tmea+2) ℃/932-1112℉：± (1%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
0.1℃/0.18°F
600-1800℃：± (0.1%*Tmea+1) ℃ / 1112-3272℉：± (0.1%*Tmea+1.8) ℉ , 500-600℃：± (1%*Tmea+1) ℃ / 932-1112℉：± (1%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
100:1 (90% energy)
3mm
10ms
0.100～1.100
Visual display
Averaging mode, temperature filter mode, peak/valley hold mode
0.3m~INF
7° x 5.5°
1728*1296
Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA
RS485, Modbus RTU, Modbus TCP, I/O
Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm
TCP/IP
Max 5W
IP66
1 g, IEC 60068-2-6
15 g, IEC 60068-2-27
- Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F)
-20℃ to 70℃ (-4°F to +158°F)
＜95% non-condensing
680g(1.5 lb)
φ52.4 x 148.7mm（φ2.06 x 5.85in）
DC 10~30V
OLCD screen, resolution 128*32
No
1.45～2.2μm (Single Color)
150℃~1600℃(302°F~2912°F)
250-1600℃：± (0.3%*Tmea+2) ℃ /482-2912℉：± (0.3%*Tmea+3.6) ℉, 150-250℃：± (1%*Tmea+2) ℃/302-482℉：± (1%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
0.1℃/0.18°F
250-1600℃：± (0.1%*Tmea+1) ℃ / 482-2912℉：± (0.1%*Tmea+1.8) ℉ , 150-250℃：± (1%*Tmea+1) ℃ / 302-482℉：± (1%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
100:1 (90% energy)
3mm
10ms
0.100～1.100
Visual display
Averaging mode, temperature filter mode, peak/valley hold mode
0.3m~INF
7° x 5.5°
1728*1296
Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA
RS485, Modbus RTU, Modbus TCP, I/O
Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm
TCP/IP
Max 5W
IP66
1 g, IEC 60068-2-6
15 g, IEC 60068-2-27
- Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F)
-20℃ to 70℃ (-4°F to +158°F)
＜95% non-condensing
680g(1.5 lb)
φ52.4 x 148.7mm（φ2.06 x 5.85in）
DC 10~30V
OLCD screen, resolution 128*32
No
0.8μm ~ 1.08μm (Single Color)
700℃~3200℃(1292°F~5792°F)
± (0.3%*Tmea+2) ℃ /± (0.3%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
0.1℃/0.18°F
± (0.1%*Tmea+1) ℃ /1± (0.1%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
200:1 (90% energy)
1.5mm
10ms
0.100～1.100
Visual display
Averaging mode, temperature filter mode, peak/valley hold mode
0.3m~INF
7° x 5.5°
1728*1296
Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA
RS485, Modbus RTU, Modbus TCP, I/O
Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm
TCP/IP
Max 5W
IP66
1 g, IEC 60068-2-6
15 g, IEC 60068-2-27
- Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F)
-20℃ to 70℃ (-4°F to +158°F)
＜95% non-condensing
680g(1.5 lb)
φ52.4 x 148.7mm（φ2.06 x 5.85in）
DC 10~30V
OLCD screen, resolution 128*32
No
0.8μm ~ 1.08μm (Two-Color)
600℃~1800℃(1112°F~3272°F)
± (0.5%*Tmea+2) ℃ /± (0.5%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
0.1℃/0.18°F
± (0.3%*Tmea+1) ℃ /± (0.3%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
100:1 (95% energy)
3mm
10ms
0.850～1.150
0.100～1.100
Visual display
Averaging mode, temperature filter mode, peak/valley hold mode
0.3m~INF
7° x 5.5°
1728*1296
Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA
RS485, Modbus RTU, Modbus TCP, I/O
Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm
TCP/IP
Max 5W
IP66
1 g, IEC 60068-2-6
15 g, IEC 60068-2-27
- Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F)
-20℃ to 70℃ (-4°F to +158°F)
＜95% non-condensing
680g(1.5 lb)
φ52.4 x 148.7mm（φ2.06 x 5.85in）
DC 10~30V
OLCD screen, resolution 128*32
No
1.3μm ~ 1.7μm (Two-Color)
300℃~1600℃(572°F~2912°F)
400-1600℃：± (0.5%*Tmea+2) ℃ /752-2912℉：± (0.5%*Tmea+3.6) ℉, 300-400℃：± (2%*Tmea+2) ℃/572-752℉：± (2%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
0.1℃/0.18°F
400-1600℃：± (0.3%*Tmea+1) ℃ / 752-2912℉：± (0.3%*Tmea+1.8) ℉ , 300-400℃：± (1%*Tmea+1) ℃ / 572-752℉：± (1%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
100:1 (90% energy)
3mm
10ms
0.850～1.150
0.100～1.100
Visual display
Averaging mode, temperature filter mode, peak/valley hold mode
0.3m~INF
7° x 5.5°
1728*1296
Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA
RS485, Modbus RTU, Modbus TCP, I/O
Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm
TCP/IP
Max 5W
IP66
1 g, IEC 60068-2-6
15 g, IEC 60068-2-27
- Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F)
-20℃ to 70℃ (-4°F to +158°F)
＜95% non-condensing
680g(1.5 lb)
φ52.4 x 148.7mm（φ2.06 x 5.85in）
DC 10~30V
OLCD screen, resolution 128*32
No
0.8μm ~ 1.08μm (Two-Color)
700℃~3200℃(1292°F~5792°F)
± (0.5%*Tmea+2) ℃ /± (0.5%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
0.1℃/0.18°F
± (0.3%*Tmea+1) ℃ /± (0.3%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
200:1(95% energy)
1.5mm
10ms
0.850～1.150
0.100～1.100
Visual display
Averaging mode, temperature filter mode, peak/valley hold mode
0.3m~INF
7° x 5.5°
1728*1296
Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA
RS485, Modbus RTU, Modbus TCP, I/O
Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm
TCP/IP
Max 5W
IP66
1 g, IEC 60068-2-6
15 g, IEC 60068-2-27
- Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F)
-20℃ to 70℃ (-4°F to +158°F)
＜95% non-condensing
680g(1.5 lb)
φ52.4 x 148.7mm（φ2.06 x 5.85in）
DC 10~30V
OLCD screen, resolution 128*32
No
